Single lumen
Designed to optimise aspiration time, maximise control and improve patient comfort
Description Oocyte retrieval needle with single lumen
Purpose For use in aspiration of oocytes from ovarian follicles.
Application For use with suitable vacuum pump, collection vial and vacuum pump tubing.
Storage Store in room temperature.
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.0
- Needle length (mm): 300
- Aspiration tubing (mm): 600
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.0
- Needle length (mm): 300
- Aspiration tubing (mm): 900
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.0
- Needle length (mm): 330
- Aspiration tubing (mm): 900
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.0
- Needle length (mm): 350
- Aspiration tubing (mm): 600
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.0
- Needle length (mm): 350
- Aspiration tubing (mm): 900
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.2
- Needle length (mm): 300
- With luer connection: The needle is equipped with a Luer-lock to connect a syringe.
- Outer diameter (mm): 1.6
- Outer diameter (gauge): 16
- Inner diameter (mm): 1.1
- Needle length (mm): 300
- Aspiration tubing (mm): 600
- Outer diameter (mm): 1.6
- Outer diameter (gauge): 16
- Inner diameter (mm): 1.1
- Needle length (mm): 300
- Aspiration tubing (mm): 900
- Outer diameter (mm): 1.6
- Outer diameter (gauge): 16
- Inner diameter (mm): 1.1
- Needle length (mm): 350
- Aspiration tubing (mm): 600
- Outer diameter (mm): 1.6
- Outer diameter (gauge): 16
- Inner diameter (mm): 1.1
- Needle length (mm): 350
- Aspiration tubing (mm): 900
- Outer diameter (mm): 1.5
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.2
- Needle length (mm): 300
- Aspiration tubing (mm): 600
- With luer connection: The tubing fitted on the needle is equipped with a Luer-lock to connect a syringe.
- Outer diameter (mm): 1.6
- Outer diameter (gauge): 16
- Inner diameter (mm): 1.3
- Needle length (mm): 350
- With luer connection: The needle is equipped with a Luer-lock to connect a syringe.
- Outer diameter (mm): 1.4
- Outer diameter (gauge): 17
- Inner diameter (mm): 1.2
- Needle length (mm): 250
- With luer connection: The needle is equipped with a Luer-lock to connect a syringe.
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
Designed to deliver
Our needles are designed to optimise aspiration time, control and patient comfort.
Innovative echo marking for perfect control
The echomarking is created through innovative laser etching giving you the high visibility you need during oocyte retrieval.

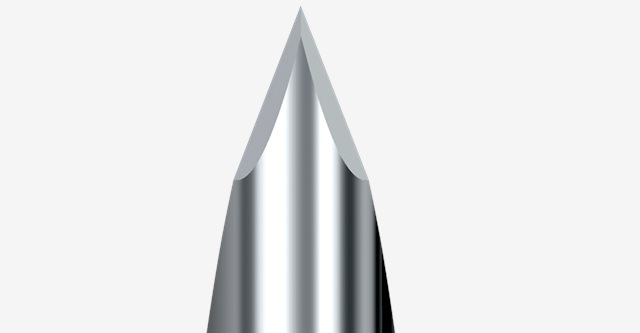

Ultra sharp design for low penetration resistance and exact precision
The needle tip is designed to meet your needs by providing extraordinary sharpness, exact precision and the utmost safety. The bevel grinding ensures low resistance penetration and distinctive backpoint grinding prevents deviation.
Cork adapted for flushing
The new needle cork is designed to facilitate easier flushing using a single lumen needle. To flush you also need a standard Luer slip syringe.
The bent cannula prevents kinking of the tube.
Colour coded peel-off labels
All needle labels are colour coded to simplify identification of needle type. The peel-off labels facilitate patient journal handling.
Double sterile pack to meet surgical standards
Each needle is individually packaged in a double sterile barrier to avoid contamination in the operating theatre.
Guaranteed free from toxins
To detect toxic materials, Vitrolife has developed a very sensitive 1-cell mouse embryo assay (MEA) that follows the development of single-cell mouse embryos to hatching blastocysts. This assay is far more sensitive than the widely used 2-cell MEA.
Quality all the way
To safeguard robust product performance, the Vitrolife quality control system covers both the manufacturing process and the needles. We help you to maximise your success rate by ensuring consistent high quality through;
- Highly controlled manufacturing
- Inspection of all needles
- Guaranteed sterility
- Lot-to-lot consistency
- MEA-tested needles
