ICSI Pipettes
When precision, choice and control are essential.
Description Pipette with a sharp tip, with or without spike.
Purpose For aspiration and intracytoplasmic injection of a single sperm into the oocyte.
Application For use with a micromanipulator.
Storage Store in room temperature.
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 30
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 35
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 20
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 30
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 35
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 30
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 35
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 20
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 30
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 35
- E-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 30
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 30
- Without spike
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 30
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 0
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 15
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 20
- Stock information: Non regular stock item. Customer support confirm delivery time upon ordering
- A-series with spike
- Tip length (µm): 11-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 25
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 0
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 15
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- B-series with spike
- Tip length (µm): 17-20
- Total length (mm): 55-65
- Inner diameter (µm): 4-5,5
- Angle: 25
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 15
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 0
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- C-series with spike
- Tip length (µm): 12-15
- Total length (mm): 55-65
- Inner diameter (µm): 5-6
- Angle: 25
- Stock information: Non regular stock item. Customer support confirm delivery time upon ordering.
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 0
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 15
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 20
- Stock information: Non regular stock item. Customer support confirm delivery time upon ordering
- D-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 25
- Stock information: Non regular stock item. Customer support confirm delivery time upon ordering
- E-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 20
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- E-series with spike
- Tip length (µm): 13-16
- Total length (mm): 55-65
- Inner diameter (µm): 4-5
- Angle: 35
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 20
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 35
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 0
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 15
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- F-series
- Tip length (µm): 13-16.5
- Total length (mm): 55-65
- Inner diameter (µm): 4.2-5.2
- Angle: 25
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- T-series
- Tip length (µm): 15-20
- Total length (mm): 55-65
- Inner diameter (µm): 7.5
- Angle: 20
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- T-series
- Tip length (µm): 15-20
- Total length (mm): 55-65
- Inner diameter (µm): 7.5
- Angle: 25
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
- T-series
- Tip length (µm): 15-20
- Total length (mm): 55-65
- Inner diameter (µm): 7.5
- Angle: 30
- Stock information: Non regular stock item. Customer Support confirm delivery time upon ordering.
Comprehensive range
We provide a wide range of ICSI pipettes with different characteristics, with or without spike. All ICSI pipettes are adapted to tackle the challenges in your work.
We have five different series of ICSI pipettes with spike to suit your needs, and we also offer ICSI pipettes without spike. All ICSI pipettes are available with variety design features and bend angles from 0º to 35º .
ICSI PIPETTES WITH AND WITHOUT SPIKE

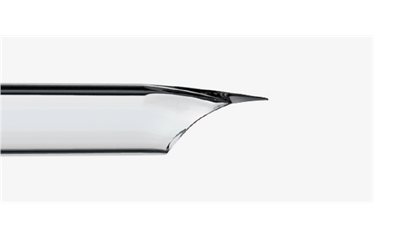

A-series
- Bend located 500 µm from tip.
- Short sharp bevel with a short spike.
- Has a unique taper that widens later to ensure less damage to the oocyte.

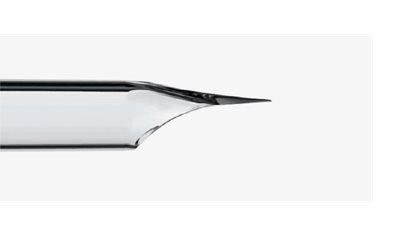

B-series
- Bend located 500 µm from tip.
- Short sharp bevel with a longer spike.
- Has a unique taper that widens later to ensure less damage to the oocyte.

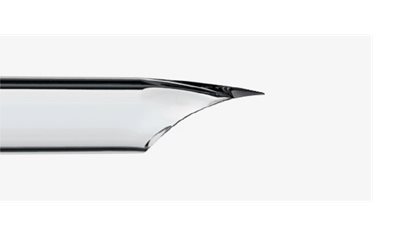

C-series
- Bend located 400 µm from tip.
- Short bevel and a very short spike.
- More sturdy and stiff behavior in PVP due to short distance from tip to location of bend.
D-series
- Bend located 1000 µm from tip.
- Parallel walls allowing for greater control of loaded sperms.

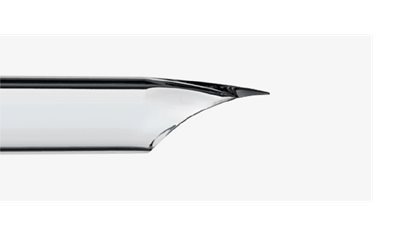

E-series
- Bend located 400 µm from tip.
- Medium bevel, short taper with parallel walls.
F-series
- Bend location 700 µm from tip.
- Long taper.
T-series
- Large size ICSI pipette.
- 7.5 µm inner diameter.
- Short spike.

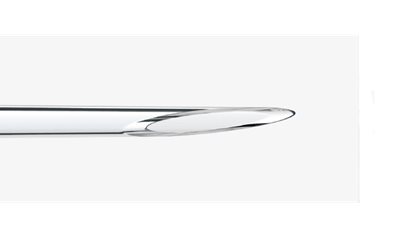

ICSI pipette without spike
When precision, choice and control are essential
Precision pipettes for
better control
Our comprehensive range of pipettes give you optimal control in micromanipulation. The pipettes are manufactured with quality assured materials that are MEA and endotoxin (LAL) tested.
100% control
All stages of production are controlled, from the raw materials to the final product. Every single pipette is checked for dimensions to minimise LOT-to-LOT variation. This allows you to use our pipettes in the most standardised way.
Sensitive MEA-test
Our pipettes are tested with the industry leading Vitrolife 1-cell MEA test. Using the best toxicity test for gametes, this secures that all pipettes from Vitrolife are safe in every procedure.
Heat polished base
Our pipettes are made of borosilicate glass that helps prevent the risk of oil clogging the inner surface. All Vitrolife pipettes have heat polished bases to ensure longevity of seals in your pipette holder.
Thorough quality control
The visual controls performed guarantee the mechanical integrity of each single pipette before release. This means that all pipettes meet the specified tolerances and that they are cleared being free from glass fragments and other residues.
Individual packaging
Each pipette remains sterile until package is unsealed - guaranteed sterility.
Everything you need
We provide the products you need for each pipette and micromanipulation procedure in the IVF treatment. Designed and tested together to improve efficiency and streamline your workflow.
