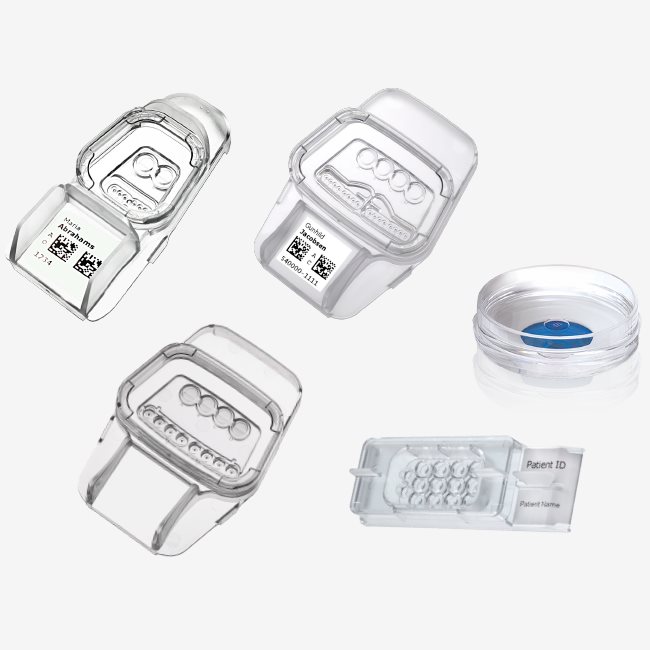

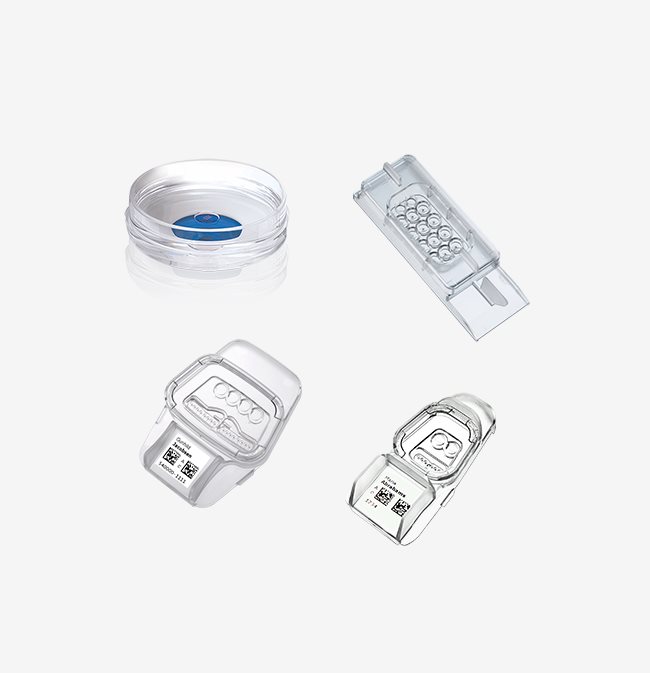

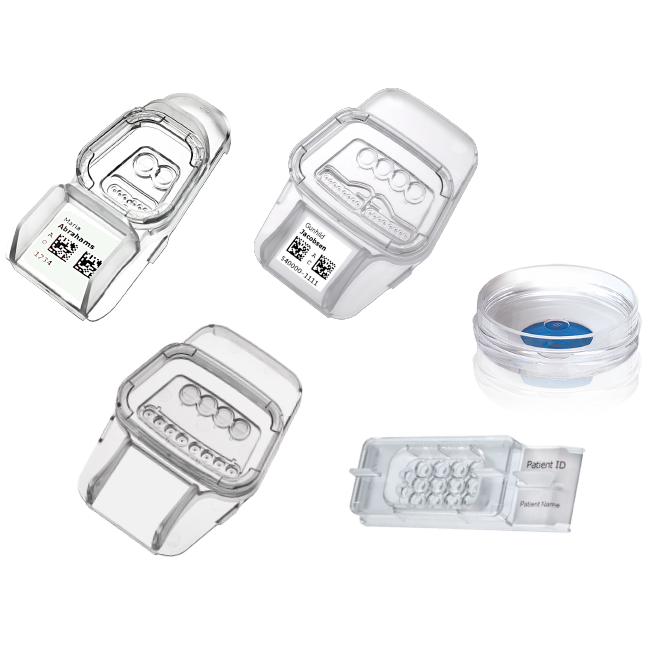

Time-lapse dishes
For embryo culture with a time-lapse system.
Purpose For embryo culture.
Application Ready to use.
Storage Store in room temperature.
- Description: For embryo culture in EmbryoScope time-lapse incubator. Each EmbryoSlide culture dish contains 12 separate wells for individual incubation of up to 12 embryos.
- Slide size (mm): 25x75
- Number of wells: 12
- Description: Non-sterile dish with silicone lid, used to equilibrate medium samples inside EmbryoScope+, EmbryoScope 8 or CulturePro prior to performing pH measurements.
- Description: For embryo culture in the EmbryoScope+ and EmbryoScope 8 instruments. Each Embryo Slide+ ic8 dish contains 8 individual culture wells.
- Slide size (mm): 48 × 68
- Number of wells: 8
- Description: For embryo culture in the EmbryoScope+ and EmbryoScope 8 instruments. Each EmbryoSlide+ culture dish contains 16 microwells for incubation of up to 16 embryos.
- Slide size (mm): 49 × 68
- Number of wells: 16
- Description: For embryo culture in EmbryoScope Flex time-lapse incubator. Each EmbryoSlide Flex culture dish contains 6 microwells for incubation of up to 6 embryos.
- Slide size (mm): 32 x 65
- Number of wells: 6
- Disclaimer: Not for sale in US
- Description: Micro well group culture dish, 9-well with vented lid, for embryo culture in Primo Vision EVO and EVO+.
- Number of wells: 9

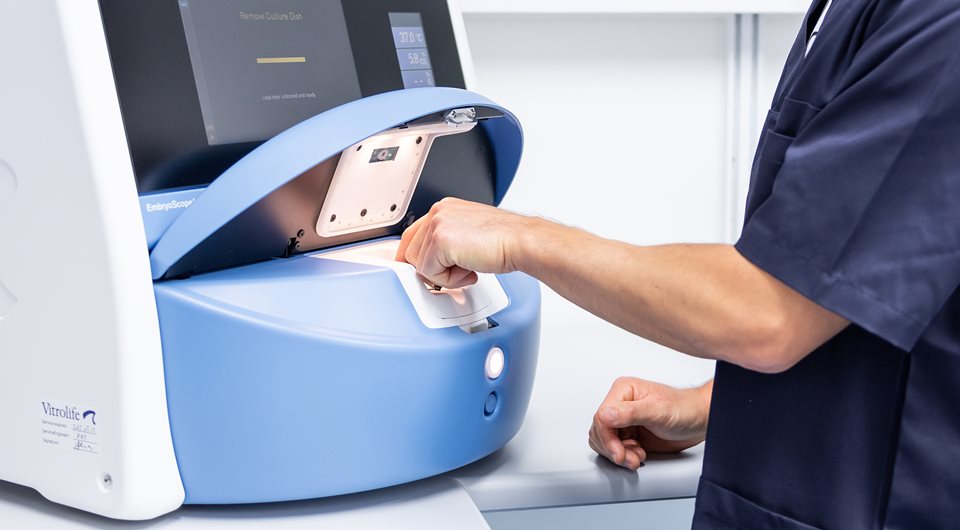

EmbryoScope+ holds 15 patient dishes with up to 16 embryos each
The EmbryoScope+ can simultaneously acquire time-lapse videos from up to 15 patient dishes with up to 16 embryos each making it ideal for clinics who wish to offer time-lapse to all of their patients.

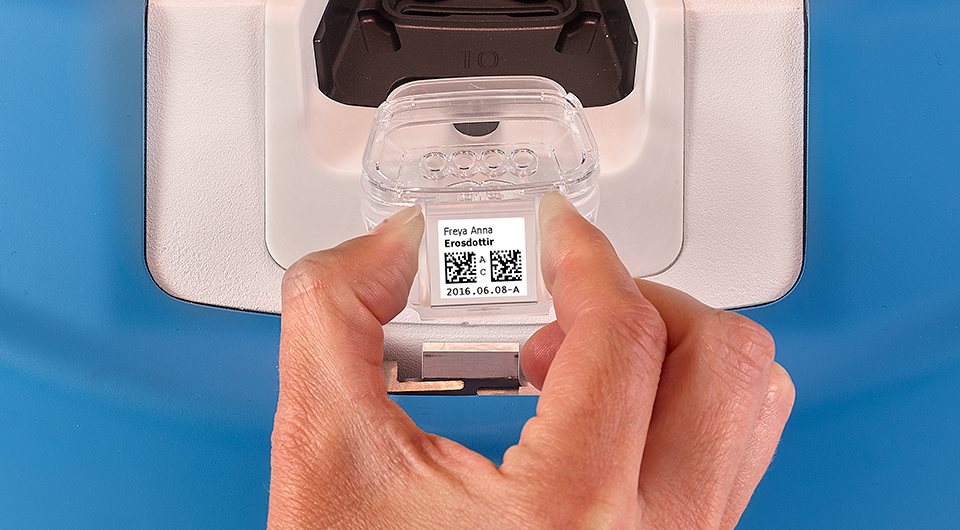

To improve workflow, the EmbryoSlide+ culture dishes are automatically registered using a special patient barcode labelling system.

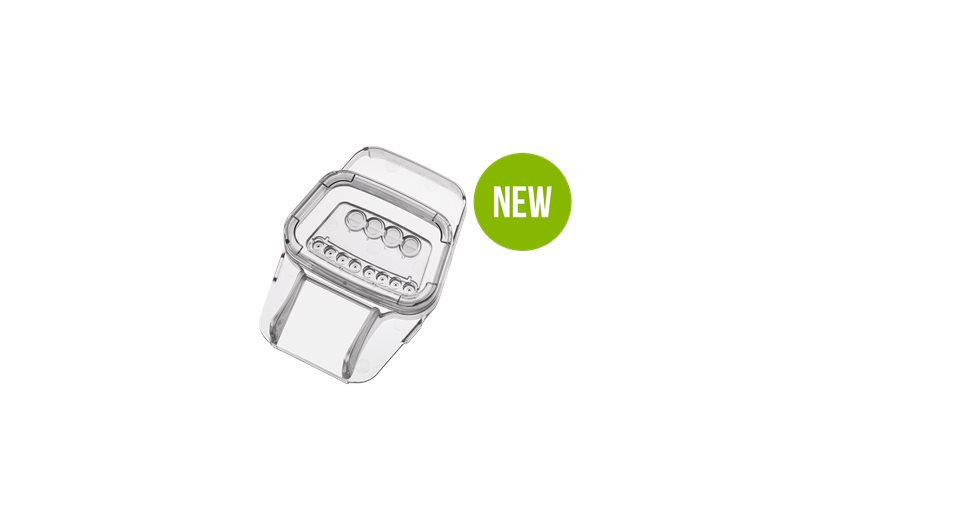

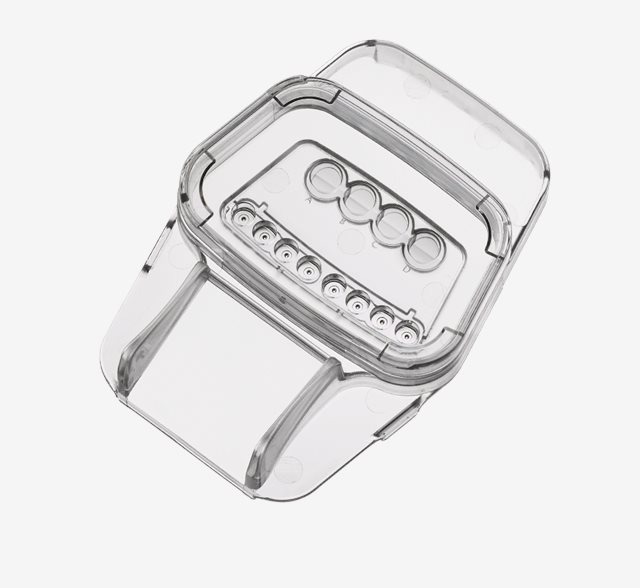

EmbryoSlide+ ic8 dish
- 8 embryos/dish, 8 or 15 culture dishes/incubator
- Barcode labelling
- Holds 8 embryos in individual culture wells
- 8x 20 µl culture media per well
- 1.6 mL oil overlay
- 4 flushing/rinsing wells with 25 µl -30 µl media/well
- Individually numbered wells

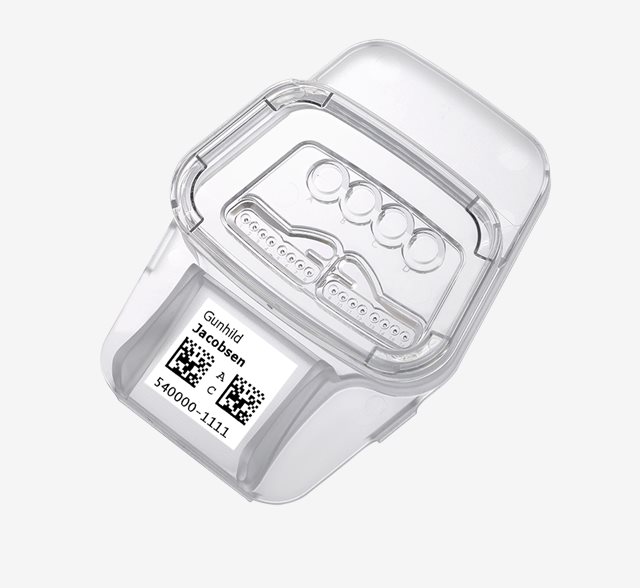

EmbryoSlide+ culture dish
- 16 embryos/dish, 8 or 15 culture dishes/incubator
- Barcode labelling
- Holds 16 embryos in discrete culture wells, in 2 reservoirs.
- 2 x 180 µl medium
- 1.6 mL oil overlay
- 4 flushing/rinsing wells with 25-30 µl media per well
- Individually numbered wells

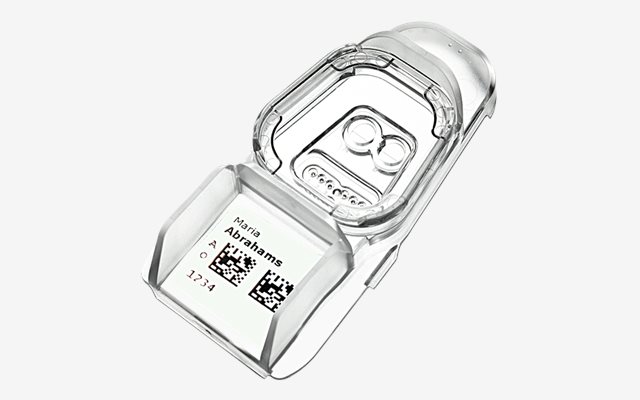

EmbryoSlide Flex culture dish
- 6 culture wells under common media droplet
- 2 rinsing wells
Media usage:
- Culture area: 140 µl
- Rinsing wells: 35 µl
- Oil overlay: 1200 µl

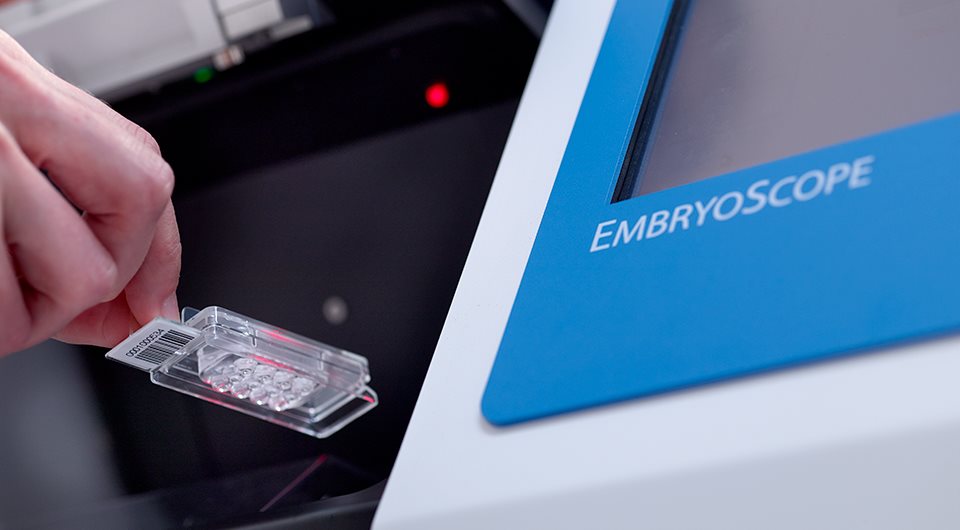

EmbryoScope holds 6 patients with up to 12 embryos in each EmbryoSlide culture dish
Ensure the best possible embryo culture environment with EmbryoScope. The integrated design of the EmbryoScope time-lapse incubator has been developed to ensure stable incubation while automatically acquiring images of the developing embryos at defined intervals.
EmbryoScope holds 6 patients with up to 12 embryos in each EmbryoSlide culture dish.

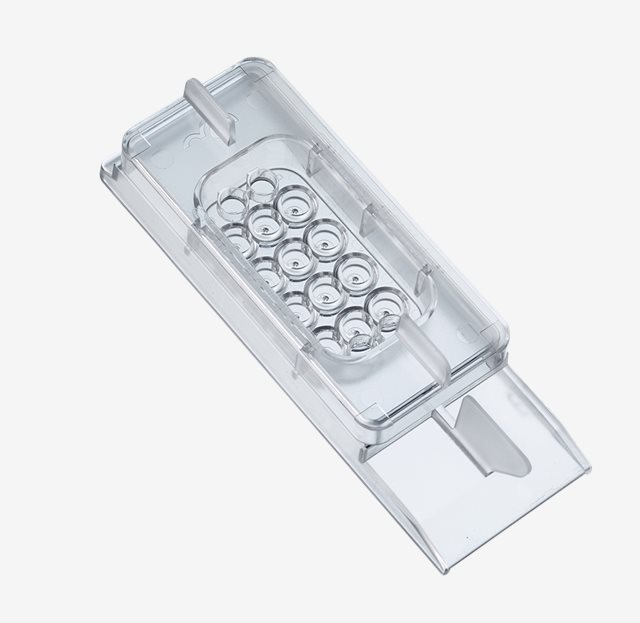

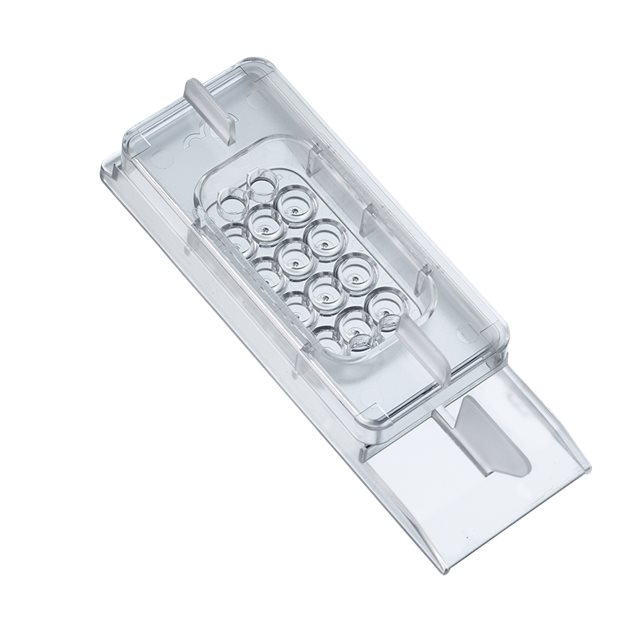

EmbryoSlide culture dish
- 12 embryos/dish, 6 dishes/incubator
- 12x25 µl medium
- 1.4 ml oil overlay
- 4 flushing / rinsing wells
- Individually numbered wells
- Lid ensures minimal evaporation
- Handling fin for safe transfer between workplaces

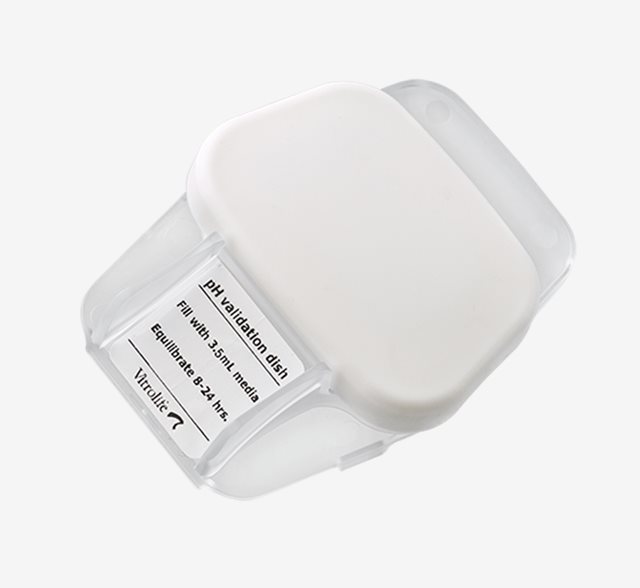

Validate pH of media in EmbryoScope+ time-lapse system with the pH validation dish
A specially designed gas permeable silicon lid allows equilibration of culture media in a non-sterile EmbryoSlide culture dish without use of an oil overlay. The silicon lid prevents evaporation during the equilibration period allowing direct measurement of pH in the slide without going through oil overlay.
- For pH validation in the EmbryoScope+ time-lapse incubator.
- Non-sterile ES+ dish with a customized gas permeable silicon lid to allow equilibration of media without oil overlay.
- Measurements are taken directly in the dish after an equilibration for a period of 8-18 hours in the ES+. Measurements should be taken immediately after removal from incubator and removal of lid, using either a micro-pH meter or blood gas analyzer. Regular pH probes are not suitable.
- Transfer of media to a second vessel will alter pH and therefore not recommended for measurements.
- Dishes packed individually with lid in pouches.
- Silicon lids are toxicity tested: Embryotoxicity tested with 1-cell mouse embryos – minimum 80% expanded blastocysts after 96 hrs, Cytotoxicity test according to ISO 10993-5, Non-pyrogenic
- Not a medical device.

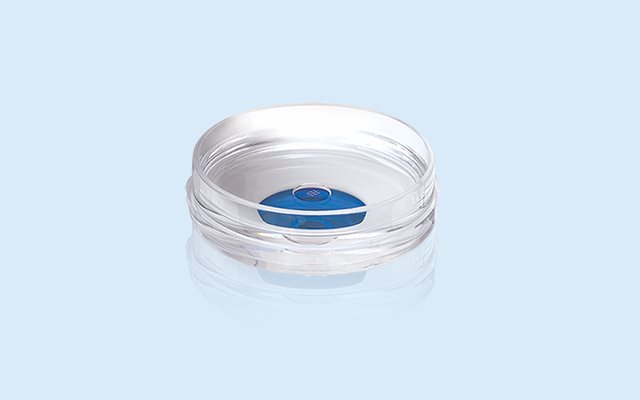

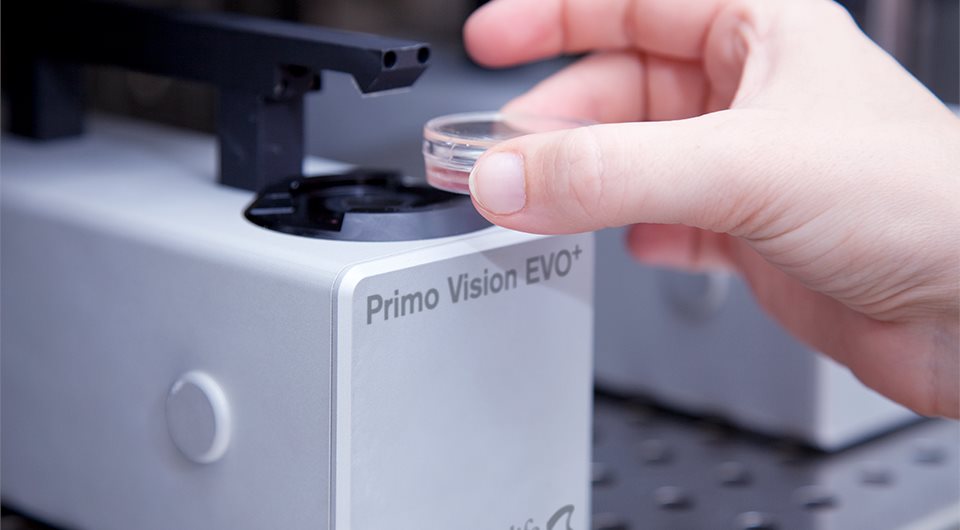

The Primo Vision culture dish
Each Primo Vision culture dish combines the benefits of culturing multiple embryos together, while keeping them in place for individual monitoring.1
The dishes come in two types with 9 or 16 microwells. They are designed to keep embryos in the microscope’s field of view, facilitating individual identification and monitoring. During embryo culture, all microwells are covered by one droplet of culture media to ensure an optimal culture environment.
The Primo Vision dishes are individually packed, sterile, CE marked and MEA-tested.
1. P. Fancsovits et al. Hum. Reprod. (2013) 28 (suppl 1): i149-i206.
EmbryoScope 8 - optimal capacity to suit your clinics need
EmbryoScope 8 time-lapse system is designed to meet the needs of smaller clinics who want to enjoy the same great benefits of the EmbryoScope+ family of time-lapse systems.
Learn more
EmbryoScope+, making time-lapse standard of care
EmbryoScope+ is designed to meet the needs of clinics wishing to implement time-lapse as a standard of care to more of their patients.
Learn more

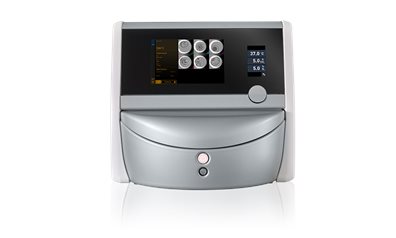

EmbryoScope Flex, ideal for mild stimulation & low responder patients
